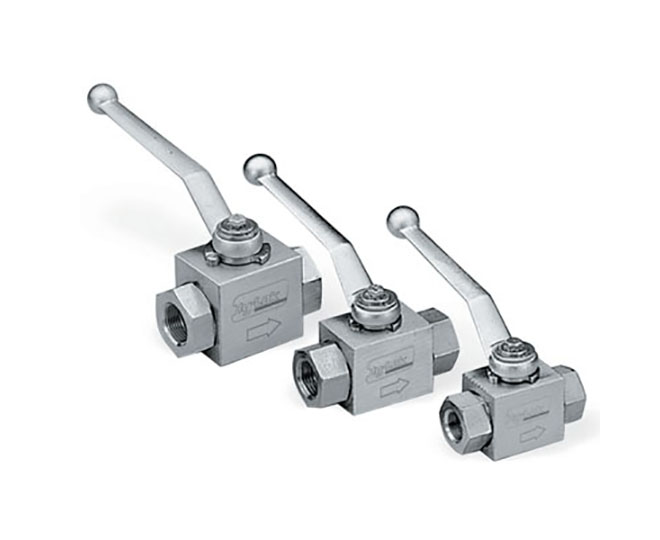

Hy-Lok designs, develops, and delivers high-quality, long-lasting ball valves that meet internationally-recognized DIN standards – exacting criteria for efficiency and quality. Our 115 Series ball valves are expertly engineered, skillfully crafted, and rigidly tested to meet – and exceed – globally-accepted DIN specifications and standards for the industry. Hy-Lok’s 115 Series ball valves are ideal for use with hydraulic fluids, compressed air, lubricants, and fuel oil systems.
Hy-Lok’s 115 Series ball valves:
- Conform to DIN standards
- Leak-free
- Durable
- Reliable
- Rugged construction
- Compact design
- Simple to install
- Easy to operate and adjust
- Minimize pressure drop
- Versatile handle
- Cost-effective
Description
Pressure rating to 7,200psig (500bar) at 70°F (21°C).- Temperature rating from -46°F to 210°F (-20°C to 100°C) with POM-MoS2 seats standard.
- Rugged body construction is machined from barstock.
- Handles can be fitted in 8 positions with 45° increments available up to DN25.
- Locking device available as an option.
- Indicator on washer provides easy identification of flow direction.
- Maximum orifice range from DN4 to DN80.
- Ball seats are available in POM-MoS standard and optional PTFE.
- Floating ball is machined from bar stock.
- Size range from 1/8" thru 3" tubing and pipe.
- Variety of end connections include DIN 2353 L & S series, and male / female DIN / ISO / BSP / NPT threads.
Body Material is available in 316 stainless steel and carbon steel. Tube connections complete with sleeves and nuts.
