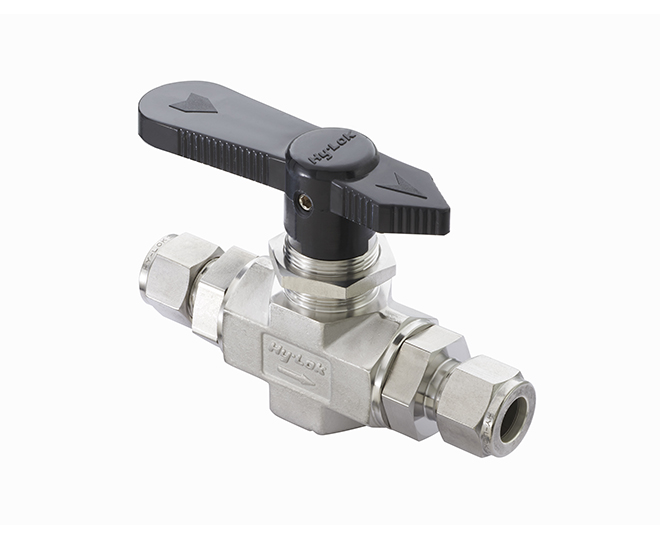

102 Series: High Pressure Ball Valves

 Description

  • Pressure rating up to 6,000psig (413bar) for stainless steel body and up to 3,000psig (207bar) for brass body at 70°F (21°C).
  • Temperature rating from -65°F to 45°F (-54°C to 232°C) with PTFE seats.
  • Floating ball design ensures leak proof shut-off at high pressure.
  • Retainer with PCTFE seats are replaceable.
  • Support and end packing is replaceable and machined from PTFE.
  • Handle with arrow indicates flow direction, allows quick operation and low torque with 1/4 turn.
  • Panel mounting nut allows easy valve mounting.
  • Orifice is maximized for minimal pressure drop with CV 0.23 to 1.6.
  • Variety of end connections include Hy-Lok tube fittings, male/female NPT and ISO threads.
  • Body Material is available in 316 stainless steel and brass.
