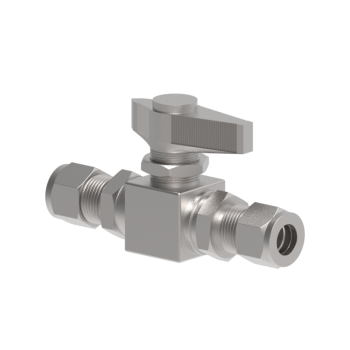

THH-12M-S316 Th Series Trunnion Ball Valves

Model: THH-12M-S316

Request Quote Quantity

Product Details

Body Material 316 Stainless Steel
Dimension A (mm) 116.8
Dimension B (mm) 58.4
Type 2-Way
Flow Coefficient (Cv) 1.00
Pressure Rating (psi) 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000, 10000
Pressure Rating (bar) 69, 138, 207, 276, 345, 414, 483, 552, 621, 689
Temperature Rating (ºF) 0 to 450
Temperature Rating (ºC) -17 to 450
End Connection Hy-Lok Tube Fitting
Inlet End Connection 12mm Hy-Lok
Orifice (in) 0.188
Orifice (mm) 4.80
Outlet End Connection 12mm Hy-Lok
Handle Color Blue, Green, Red, Yellow, Black Nylon (standard)
Vent Port Without (Standard), Downstream Vent, Upstream Vent
Dimension A (in) 4.600
Seat Material PEEK
Dimension B (in) 2.300
Handle Material Nylon 6/6 with Brass Insert
Documentation
PDF T-Series.pdf
