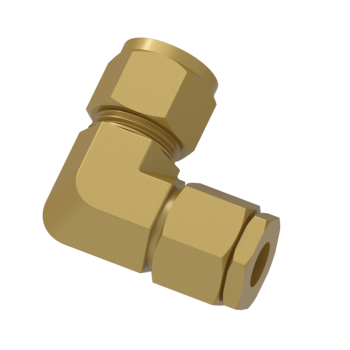

Tube O.D. (mm) | 20 |
Dimension D (mm) | 15.90 |
Dimension L1 (mm) | 42.60 |
Material | Brass |
Series | CSL |
Dimension L2 (mm) | 47.11 |
Dimension A (mm) | 26 |
Dimension B (mm) | 22.00 |
Dimension l (mm) | 32.50 |
Width Across Flat (H) (mm) | 32.00 |
Width Across Flat h (mm) | 30.00 |
Documentation | |
swivel-elbow.pdf |
