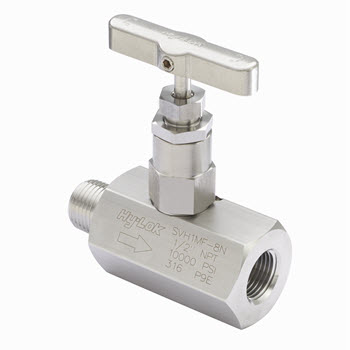

SVH1MF-4N-S316 Svh1 Series High Pressure Bar Stock Needle Valves For 10000Psig Straight Pattern

Model: SVH1MF-4N-S316

Request Quote Quantity

Product Details

  • Each high pressure bar stock needle valve is tested with nitrogen at 1000 psig (69 bar) to Max. leak rate of 0.1 SCCM.
  • Hydrostatic shell test is performed at 1.5 times the working pressure as an option.
  • Other tests are upon request.
DescriptionGrade / ASTM Specification
Valve Body Materials
316SSCarbon SteelAlloy 400
1HandleStainless SteelAluminumStainless Steel
2Set ScrewStainless Steel
3Lock Nut316SS/A479
4Packing Bolt316SS/A479
5Packing Gland *316SS/A479
6Packing Washer *Reinforced PTFE
7Packing *PTFE, Grafoil
8Bonnet *316SS/A479C, Steel/A105Alloy 400/B164
9Stem *316SS/A479
10Vee Tip *630SS/A564Alloy 500/B865
Ball Tip *
11Stop PinStainless Steel
12Body316SS/A479C, Steel/A105Alloy 400/B164

"*"marked are wetted parts.

Grafoil is trade mark of UCAR
SeriesPacking MaterialBody MaterialTemperature RangePressure Rating at 100°FPressure Rating at Maximum Temperature
SVH1PTFEStainless Steel-65°F ~ 450°F (-54°C ~ 232°C)10000 psig4000 psig at 500°F (276 bar at 260°C)
Carbon Steel
SVH2PTFEStainless Steel-65°F ~ 450°F (-54°C ~ 232°C)6000 psig4130 psig at 450°F (285 bar at 232°C)
Carbon Steel-20°F ~ 350°F (-29°C ~ 176°C)6000 psig5230 psig at 350°F (360 bar at 176°C)
Alloy 400-65°F ~ 450°F (-54°C ~ 232°C)5000 psig3970 psig at 450°F (274 bar at 232°C)
GrafoilStainless Steel-65°F ~ 1200°F (-54°C ~ 648°C)6000 psig1715 psig at 1200°F (118 bar at 648°C)
Carbon Steel-20°F ~ 350°F (-29°C ~ 176°C)6000 psig5230 psig at 350°F (360 bar at 176°C)
Alloy 400-65°F ~ 500°F (-54°C ~ 260°C)5000 psig3960 psig at 500°F (273 bar at 260°C) *

* Not applicable over 500°F (260°C)
Additional Information American Bureau Shipping Certificate No. 00-3K50288-X, Lloyd's Register Certificate No. 01/10075, Germanischer Lloyd Certificate No. 57798-91 HH, DET Norske Veritas Certificate No. P-9100
Dimension L (mm) 76.2
Dimension L1 (mm) 38.10
Series SVH
Dimension L2 (mm) 38.10
Body Material 316 Stainless Steel
Quality System Certificates ISO 9001 Certificate No. GQC 212, ASME Sect II (MO) Certificate No. QSC 584
Dimension L (in) 3.000
Dimension H (mm) 90.00
Dimension S (mm) 38.10
Dimension C (mm) 57.20
Dimension H (in) 3.54
Flow Coefficient (Cv) 0.52
Pressure Rating (psi) 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000, 10000
Pressure Rating (bar) 344, 69, 138, 206, 275, 413, 483, 689, 551, 620
Temperature Rating (ºF) -65 to 450
Temperature Rating (ºC) -54 to 232
Packing Material PTFE
Stem Tip Non Rotating Vee (Standard), Non Rotating Ball
Dimension F (in) 2.520
Dimension F (mm) 64.0
Inlet End Connection 1/4" Male NPT
Orifice (in) 0.197
Orifice (mm) 5.00
Outlet End Connection 1/4" Female NPT
Body Pattern Straight Pattern (Standard), Angle Pattern
Sour Gas Without (Standard), NACE MR-01-75
Dimension C (in) 2.25
Dimension L1 (in) 1.500
Dimension L2 (in) 1.500
Dimension S (in) 1.500
Operating Pressure (psig) 10,000
