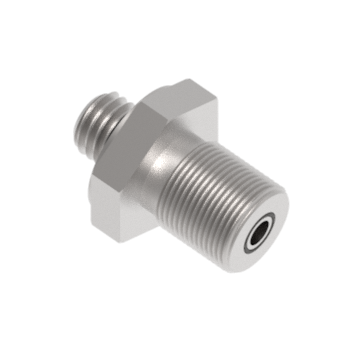

Additional Information | American Bureau Shipping Certificate No. 00-3K50288-X, Lloyd's Register Certificate No. 01/10075, Germanischer Lloyd Certificate No. 57798-91 HH, DET Norske Veritas Certificate No. P-9100 |
Dimension L (mm) | 43.94 |
Material | Bodies Glands and Nuts - 316 stainless steel, Automatic Tube Weld Fittings - 316L stainless steel, O - RING - 70 durometer fluorocarbon ( Viton ) is standard on ZCO bodies . 90 durometer fluorocarbon is used with SAE / MS threads. |
Dimension d (in) | 0.620 |
Dimension L (in) | 1.730 |
Dimension L₁ (in) | 0.590 |
Dimension L₁ (mm) | 14.99 |
Dimension d (mm) | 15.75 |
Working Pressure (psig) | 3600 |
Working Pressure (bar) | 240 |
Straight Thread | 1 1/16 - 12 |
Hex Flat H (in) | 1 3/8 |
Size (in) | 3/4 |
Installation Instructions | Install ZCO body to existing port, tubing or equipment. Assemble ZCO body with ZCO female nut and gland and tighten nut 1/8 turn with a wrench after finger tight to make sure metal to metal contact. When ZCO body or gland needs soldering, welding or brazing procedures, the O-ring should be removed to prevent possible damage. |
O-Ring Uniform Size Number | 912 |
Documentation | |
H-260CF.pdf |
