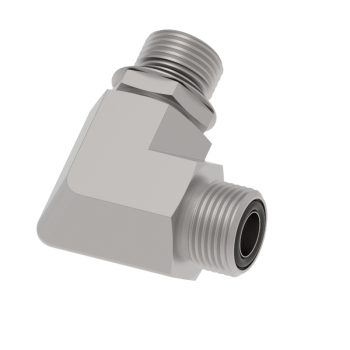

Additional Information | American Bureau Shipping Certificate No. 00-3K50288-X, Lloyd's Register Certificate No. 01/10075, Germanischer Lloyd Certificate No. 57798-91 HH, DET Norske Veritas Certificate No. P-9100 |
Dimension L (mm) | 41.91 |
Material | Bodies Glands and Nuts - 316 stainless steel, Automatic Tube Weld Fittings - 316L stainless steel, O - RING - 70 durometer fluorocarbon ( Viton ) is standard on ZCO bodies . 90 durometer fluorocarbon is used with SAE / MS threads. |
Dimension d (in) | 0.400 |
Dimension L (in) | 1.650 |
Dimension L₁ (in) | 1.330 |
Dimension L₂ (in) | 0.500 |
Dimension L₁ (mm) | 33.78 |
Dimension d (mm) | 10.16 |
Working Pressure (psig) | 3600 |
Working Pressure (bar) | 240 |
Straight Thread | 3/4 - 16 |
Dimension L₂ (mm) | 12.70 |
Size (in) | 1/2 |
Installation Instructions | Install ZCO body to existing port, tubing or equipment. Assemble ZCO body with ZCO female nut and gland and tighten nut 1/8 turn with a wrench after finger tight to make sure metal to metal contact. When ZCO body or gland needs soldering, welding or brazing procedures, the O-ring should be removed to prevent possible damage. |
O-Ring Uniform Size Number | 908 |
Hex Flat H₁ (in) | 7/8 |
Wrench Flat H (in) | 1 1/16 |
Dimension U (in) | 1.010 |
Documentation | |
H-260CF.pdf |
