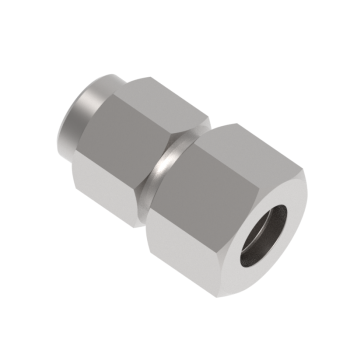

DGC06S-04G-S316 Pressure Gauge Connector Bsp Paralled

Model: DGC06S-04G-S316

Request Quote Quantity

Product Details

Material 316 Stainless Steel
Series DGC-G
Tube O.D. (mm) 6.00
d (mm) 3.50
H (mm) 17.00
h (mm) 27.00
L (mm) 46.00
l (mm) 11.00
l 1 (mm) 20.00
l 2 (mm) 5.00
T G(PF) (mm) 1/2
PN (bar) 630
