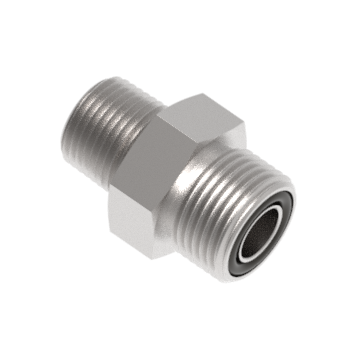

|Additional Information||American Bureau Shipping Certificate No. 00-3K50288-X, Lloyd's Register Certificate No. 01/10075, Germanischer Lloyd Certificate No. 57798-91 HH, DET Norske Veritas Certificate No. P-9100|
|Dimension L (mm)||29.46|
|Material||Bodies Glands and Nuts -316 stainless steel
Automatic Tube Weld Fittings -316 L stainless steel
O-RING -70 durometer fluorocarbon (Viton) is standard on ZCO bodies. 90 durometer fluorocarbon is used with SAE/MS threads. Other materials are available upon request with temperature range belows are:
|Dimension d (in)||0.180|
|Dimension L (in)||1.160|
|Dimension L₁ (in)||0.380|
|Dimension L₁ (mm)||9.65|
|Dimension d (mm)||4.57|
|Working Pressure (psig)||10000|
|Working Pressure (bar)||680|
|Connection Type||Male NPT|
|Hex Flat H (in)||5/8|
|Installation Instructions||Install ZCO body to existing port, tubing or equipment. Assemble ZCO body with ZCO female nut and gland and tighten nut 1/8 turn with a wrench after finger tight to make sure metal to metal contact.
When ZCO body or gland needs soldering, welding or brazing procedures, the O-ring should be removed to prevent possible damage.
|Size P (in)||1/8|
