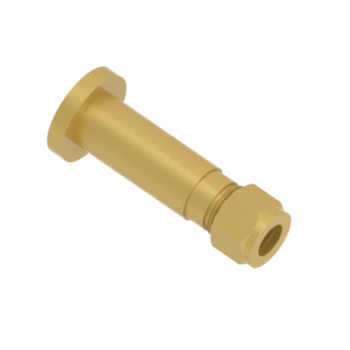

CFTC6-SM-BRAS Lapped Flange Connector

Model: CFTC6-SM-BRAS

Request Quote Quantity

Product Details

Additional Information	American Bureau Shipping Certificate No. 00-3K50288-X, Lloyd's Register Certificate No. 01/10075, Germanischer Lloyd Certificate No. 57798-91 HH, DET Norske Veritas Certificate No. P-9100
Dimension D (mm)	34.5
Dimension L (mm)	82.3
Material	Brass
Series	CFTC
Dimension l (mm)	74.9
Dimension l₁ (mm)	6.5
Min. d (mm)	7.0
Pipe Thread	ISO Tapered\|ISO Parallel\|NPT\|Unified Screw
Quality System Certificates	ISO 9001 Certificate No. GQC 212, ASME Sect II (MO) Certificate No. QSC 584
Dimension L₁ (mm)	56.5
Dimension d₁ (mm)	21.10
Flange Seal	SM (Smooth)
Flange Surface Finish (Ra) (µm)	3.2 - 6.3
Tube size (in)	3/8

Documentation
PDF	H-200TF.pdf
