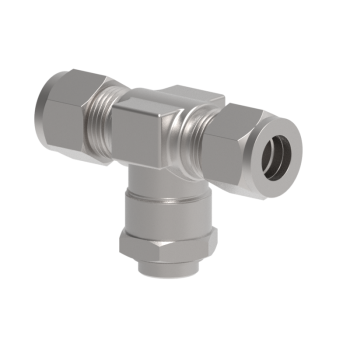

FTH-8M-S316 Cng Filter And Tube Fitting Micron Tee Filter

Model: FTH-8M-S316

Request Quote Quantity

Product Details

Dimensions shown with Hy-Lok nuts in finger-tight position, where applicable.

  • Replacement °F filter elements with body in line.
  • Compact and robust integral union bonnet design.
  • Filter elements are made °F sintered stainless steel.
Tube O.D. (mm) 8
Dimension L1 (mm) 38.70
Dimension L2 (mm) 38.70
Body Material 316 Stainless Steel
Dimension E (mm) 28.5
Dimension H (mm) 38.80
Dimension C (mm) 11.00
Max. Working Pressure (psig) 6000
Seal Material PTFE
Inlet End Connection 8mm Hy-Lok
Maximum Operating Temperature (ºF) -40 to 250
Maximum Operating Temperature (ºC) -40 to 121
Orifice (mm) 4.40
Outlet End Connection 8mm Hy-Lok
O-Ring Material Viton
Filter Element Material Stainless Steel 316
