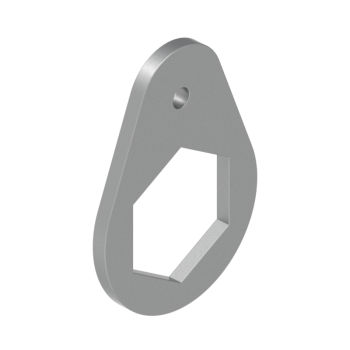

CBRE-3-STEL Bulkhead Retainer

Model: CBRE-3-STEL

Request Quote Quantity

Product Details

Material Carbon Steel
Series CBRE
Dimension E (mm) 14.28
Dimension H (mm) 14.28
Applicable Fitting Size (in) 3/16
Applicable Fitting Size (mm) 3,4
Dimension R (mm) 3.97
Dimension J (mm) 11.91
Dimension O (mm) 6.35
Drill Hole Dia (in) 3.00
U Drive Screw Size 6-3/8
Drill Number 31
