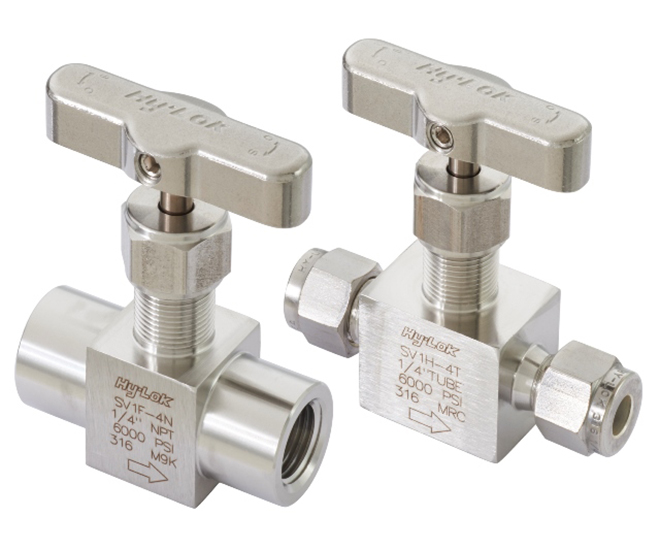

SV Series

Description

  • Pressure rating up to 6,000 psi (413 bar) at 100°F (38°C).
  • Temperature rating from -65°F to 450°F (-54°C to 232°C) with standard PTFE packing, and up to 600°F (315°C) with optional PEEK packing.
  • Compact and rugged body design.
  • Body is made of extruded bar stock and available in straight and angle patterns.
  • Variety of stem tips include vee tip standard, regulating, and soft seat with PCTFE as an option.
  • Size range from 1/8" thru 1/2" tubing and piping.
  • Variety of end connections include Hy-Lok tube fittings, male/female NPT and ISO threads.
  • Body Material is available in 316 stainless steel and alloy 400.
