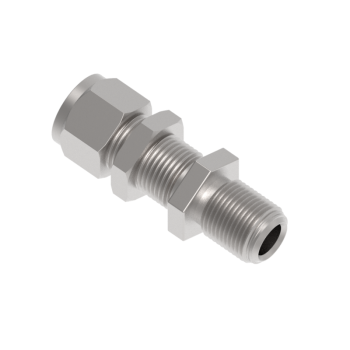

H-ZBHC4-4 Zcr Tube Fitting Bulkhead Connector

Model: H-ZBHC4-4

Request Quote Quantity

Product Details

  • Provides ultra-high purity Metal to metal seal for vacuum and positive pressure applications.
  • Sealing is accomplished by compressing the gasket between the two beads during assembly of the male nut or body and female nut.
  • The Internal surface finish of the female nut is silver plated to ensure consistent, low make up torque.
  • Dimensions B, N, L are finger - tight dimensions

Configurable Attributes
Tube O.D. (in) 1/4
Dimension L (mm) 57.20
Series H-ZBHC
Dimension B (mm) 15.20
Dimension d (in) 0.180
Dimension L (in) 2.250
Dimension d (mm) 4.55
Working Pressure (psig) 8000
Working Pressure (bar) 551
Dimension H (in) 5/8
Dimension H1 (in) 5/8
Dimension B (in) 0.600
Dimension N (mm) 33.50
Working Pressure (CU) (psig) 6,400
Working Pressure (CU) (bar) 440
Working Pressure (SS) (psig) 10,000
Working Pressure (SS) (bar) 689
ZCR Size (in) 1/4
Dimension N (in) 1.320
Panel Hole Size (in) 15/32
Panel Hole Size (mm) 11.90
Panel Thickness (in) 0.400
Panel Thickness (mm) 10.20
Dimension H2 (in) 9/16
