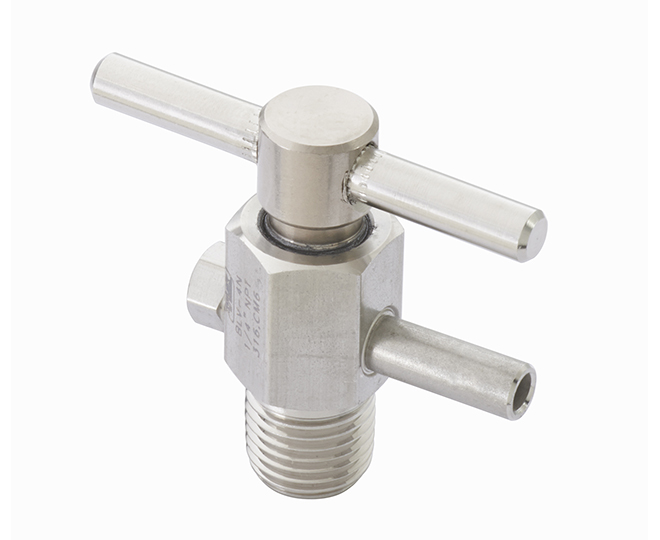

Bleed Valves

Description

  • Pressure rating up to 10000 psig (689 bar) at 100ºF(37ºC).
  • Temperature rating from -65ºF to 850ºF (-54ºC to 454ºC) with stainless steel, from -20ºF to 450ºF(-29ºC to 232ºC) with carbon steel, from -65ºF to 500ºF (-54ºC to 260ºC) with alloy 400.
  • Back stop screw prevents accidental remove of stem.
  • Stem thread and tips are chrome-plated for maximum service life.
  • Size range from 1/8" thru 1/2" tubing and piping system.
  • Variety of end connections including Hy-Lok tube fittings, male/female NPT and ISO, SAE threads.
