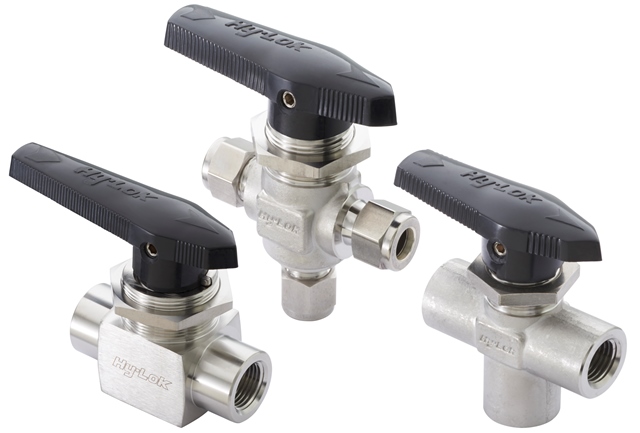

112 series: Ball Valves

Description

  • Pressure rating up to 3,000 psig (207 bar) at 70°F (21°C).
  • Temperature rating from 50°F to 150°F (10°C to 65°C) with PTFE seats and packing.
  • One-piece body available in 2-way (shut-off valve), 3-way (switching valves) and 4-way patterns - both straight and angle.
  • Vent to atmosphere available.
  • Panel mounting nuts alloys easy valve mounting.
  • Packing bolt allows easy packing adjustment with valves in-line.
  • Encapsulating ball seats are uniformly forced to form tight seals against ball and body cavity, and virtually allow no dead volume.
  • Integral ball stem is machined from barstock and best suited for encapsulating ball seats.
  • Size range from 1/8" thru 3/4" tubing and piping.
  • Silicon free available for painting system under 3/8" only with butterfly handle.
  • Variety of end connections include Hy-Lok tube fittings, male/female NPT and ISO threads.
  • Body Material is available is 316 stainless steel, brass and alloy 400.
