105 Series: High Pressure Ball Valves

Description

  • Pressure rating up to 10,000psig (690bar) at 100°F (38°C).
  • Temperature rating from -22°F to 265°F (-30°C to 130°C) with PVDF seats and from -65°F to 500°F (-54°C to 260°C) with PEEK seats.

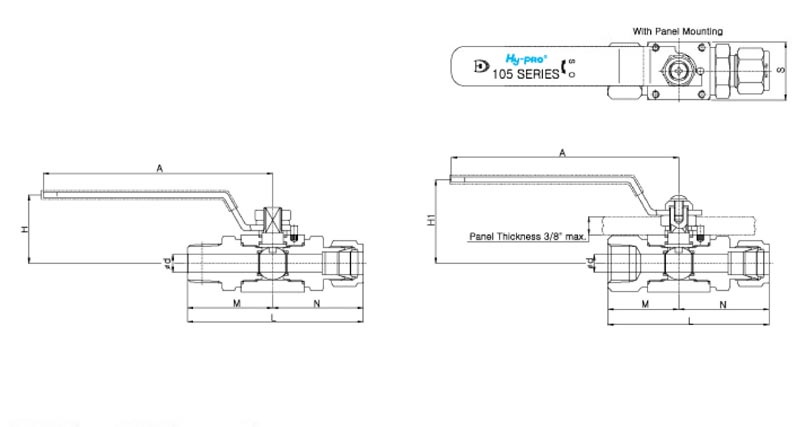

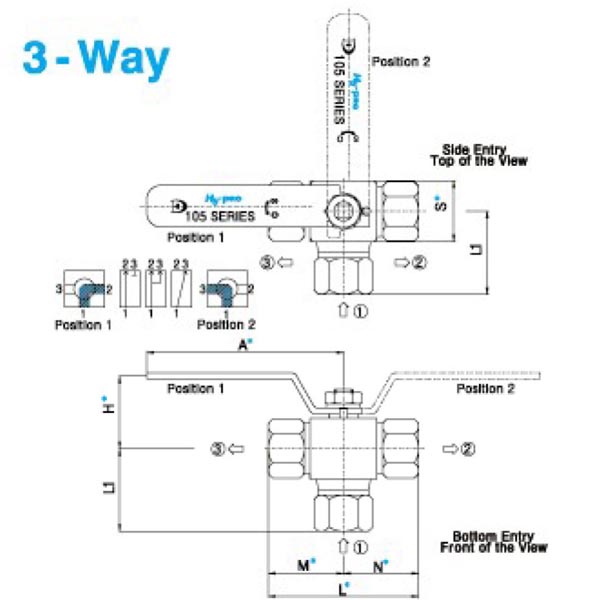

  • Robust body is available in diverse patterns including 2-way straight and angle, bottom entry and 3-way side entry.
  • Panel mounting and locking devices are available options.
  • Internally loaded stem with shoulder prevents stem blowout.
  • Floating ball design ensure leak proof shut-off at high pressure.
  • Maximized orifice minimizes pressure drop.
  • Sour gas service available.
  • Size range from 1/4" to 1" tubing and piping.
  • Variety of end connections include Hy-Lok tube fittings, male/female NPT and ISO threads.
  • Body Material is available in 316 stainless steel and alloy 400.
